Technical Highlights

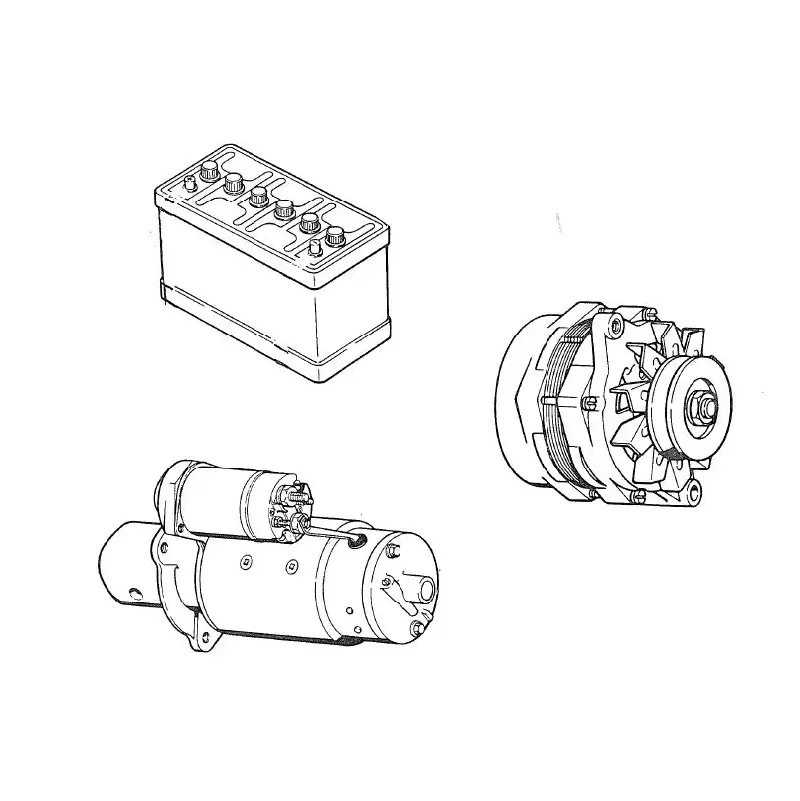

Type: Service Training Manual
Coverage: General Electrical Systems
Models: CASE B-Series (845B, 865B, 885B)
Sections: Test Meters, Ohm’s Law, Circuits, Grounds, Semiconductors, Sensors, PWM, Solenoids, Diagnostic Procedures, Battery Systems
File Info: PDF • 51 pages • English • Rev. 2-7-2013
Publisher: CNH / Unetversity
Table of Content
Test Meters
Terminology
Ohm’s Law
Circuits and Testing
• Series circuits
• Parallel circuits
• Series-Parallel circuits
• Resistance to current flow
• GroundsSolid State Components
• Capacitors (Noise & Spike Suppression, Timers)
• Diodes (Rectification, De-spiking, Isolation)
• Resistors and Zener Diodes
• LEDsSensors and Switches
• Reed, Pressure, Resistive Sensors
• Potentiometers and Voltage Dividers
• Temperature and Pressure Measurement
• Magnetic Inductance and Hall Effect SensorsPWM and Solenoid Control
Wiring Diagram Legends and Symbols
Electrical Testing Procedures
• Fundamentals of Testing
• Open/Short/High-Resistance Circuit Detection
• Component Testing (Diodes, Pots, Relays)
• Battery Types and Charging Methods
Delivery
The download link will be sent to your email instantly after payment.
Reviews
Clear filtersThere are no reviews yet.
