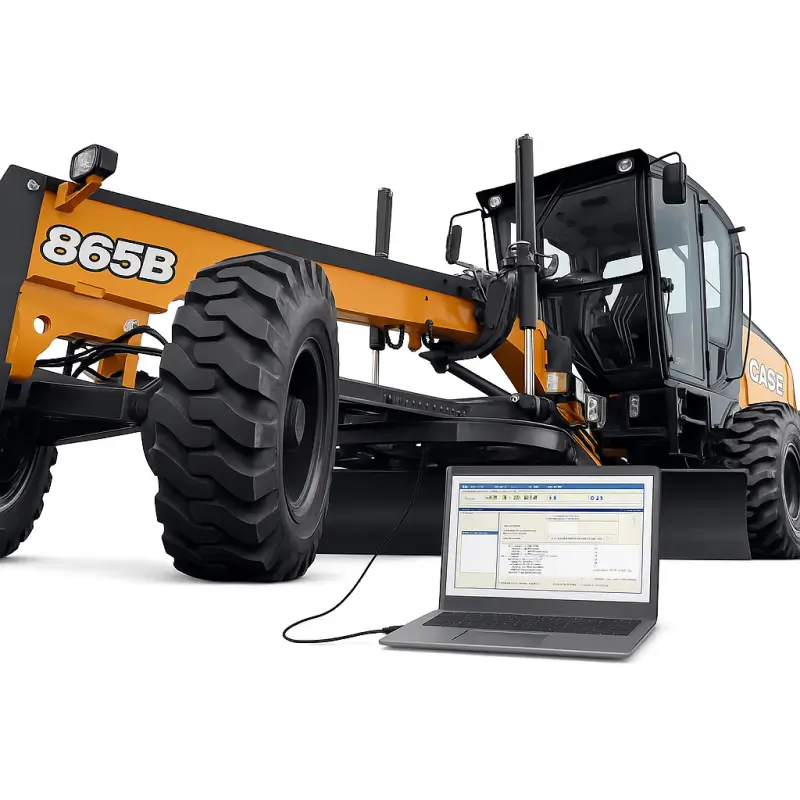

CASE Motor Grader – AWD Diagnostic by EST Training Manual

9,99

This official CASE AWD Diagnostic by EST manual provides complete step-by-step coverage for connecting, reading, and calibrating AWD systems on B-series graders using the Electronic Service Tool. It details the controller communication setup, fault code retrieval, log parameter configuration, and pump/motor calibration processes, enabling accurate diagnostics and performance optimization. Illustrated with actual EST interface screenshots and sample sensor readouts.

19 People watching this product now!

Payment Methods:

Description

Technical Highlights

  • Type: Diagnostic & Calibration Training Manual

  • System: AWD (All-Wheel Drive) & Transmission Electronic Control

  • Models Covered: CASE 845B, 865B, 885B Motor Graders

  • Date: November 18, 2013

  • File Info: PDF • 35 pages • Illustrated screenshots with diagnostic interface and calibration steps

  • Purpose: To guide technicians through EST (Electronic Service Tool) procedures for AWD diagnostics, monitoring, and calibration


Table of Content

  • General Overview
      • System Connection Setup
      • Supported Models and Interface Cables

  • Controller Status Monitoring
      • Data Retrieval & ECU Communication
      • Version and Serial Information Display
      • Example Controller Screen

  • Retrieve Controller Faults
      • Fault Code Retrieval Procedures
      • Speed Sensor Example
      • Calibration Incomplete Notification
      • AWD Controller Error 5160 Explanation
      • Full Fault List (5000–5497 Range)

  • Clear Controller Faults
      • Step-by-Step Fault Deletion
      • Confirmations & Safety Prompts

  • Monitor Mode
      • Example: Engine ON
      • Parameter Value Readouts (850–2100 RPM)
      • Drive Sensor and Pressure Monitoring

  • Log Parameter Selection
      • Data Logging Procedures
      • Parameter Limit (16 Maximum)
      • Export Instructions

  • Additional Tools
      • Integration with Cummins INSITE Diagnostics
      • Engine Communication and Flash Update Interface

  • Calibration Procedures
      • Wheel Movement Test
      • Motor Calibration (Right and Left)
      • Pump Forward/Reverse Calibration
      • Error Correction & Success Verification

  • Configuration Menu
      • System Setup Parameters
      • Reconfiguration of ECU for AWD


Delivery

The download link will be sent to your email instantly after payment.
