Porsche Panamera 2015-2016 Steering Column Memory System Wiring Manual

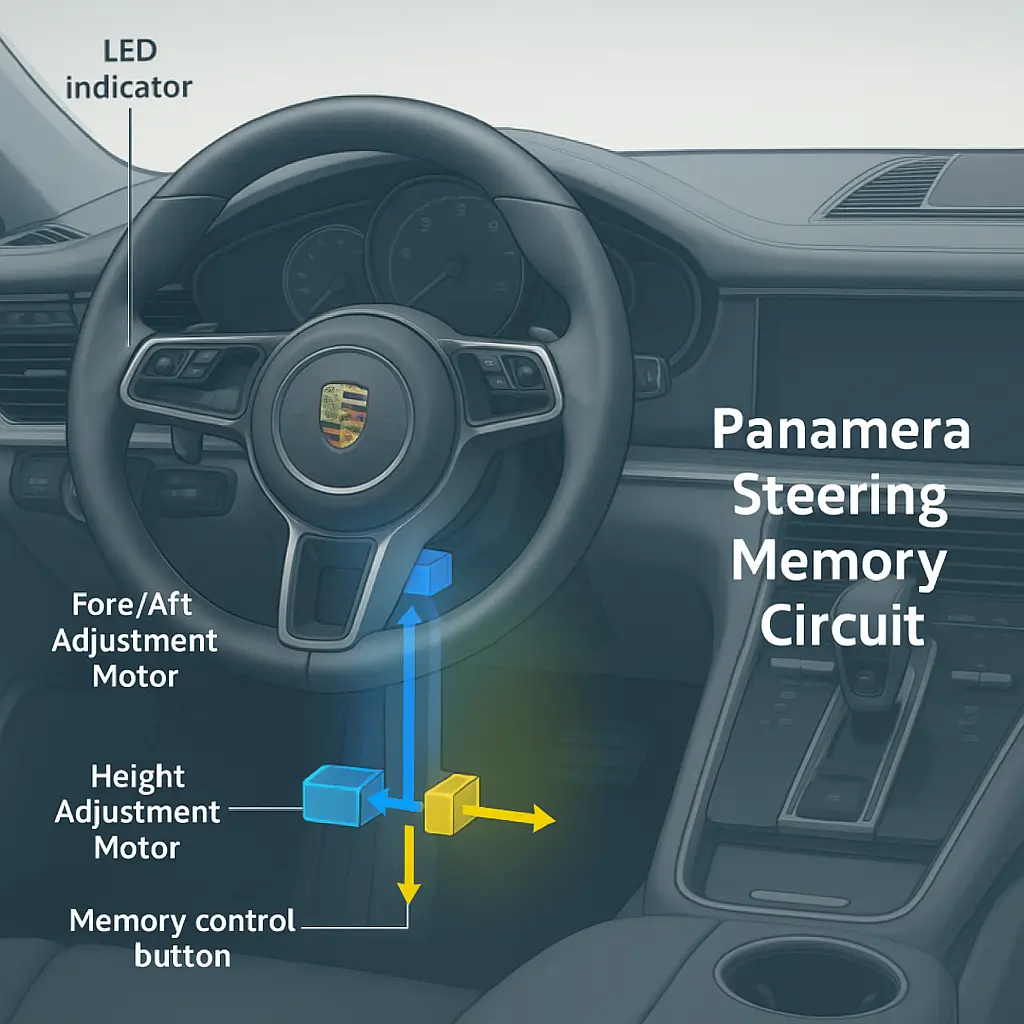

This Porsche Panamera 2015–2016 Steering Column Memory System wiring manual provides a comprehensive schematic of the steering column’s memory adjustment system, detailing both fore/aft and height motors, hall sensor feedback, and memory switch logic. The circuit includes:

• Adjustment Motors:

  • Fore & Aft Motor

  • Height Adjustment Motor

• Memory Function Integration:

  • Steering column position storage & recall logic

  • Connected to shared memory system with seat & mirror

• Sensors & Feedback:

  • Dual hall sensors for precise positioning (fore/aft + height)

  • CAN Data Line communication to onboard ECU system

• Control Units:

  • Steering Column Adjustment Control Unit

  • Memory Button Module via Driver’s Door

• Fuses, Grounding & Power Feeds:

  • Left kick panel fuse box

  • Power sourced through SOF relay with constant hot feed

• Driver Interface:

  • Adjustment switch + memory off button

  • Integrated LED Function Indicator (BLU/GRN wire)

  • Mounted to steering column support frame

This manual is ideal for diagnostics, retrofit engineering, and maintenance tasks involving adaptive steering column positioning systems on the Panamera.
